Industrial PP PE Nylon 1um 3um 5um 10um 25um 50 um Filter Bags Mesh Liquid Filter Bags
|
Item
|
Liquid filter bag
|
|||
|
Material
|
PE, PP, Nylon(NMO), Polytetrafluoroethylene(PTFE), Support customization
|
|||
|
Size
|
#1: 7” ×16” (17.78cm×40.64cm)
#2: 7” ×32”（17.78cm×81.28cm） #3: 4” ×8.25” (10.16cm×35.56) #4: 4” ×14” (10.16cm×35.56cm) #5: 6” ×22” (15.24cm×55.88cm) Customized size |
|||
|
Filtration accuracy
|
PP/PE: 0.5-300 microns
NOM: 10-1200 microns |
|||
Product descriptions from the supplier

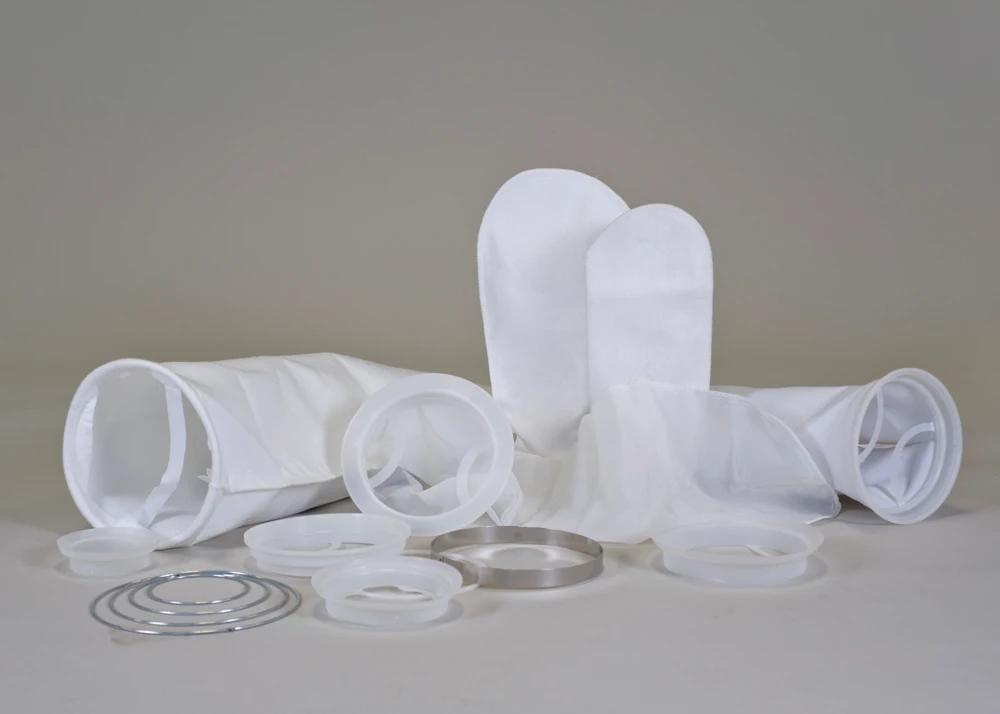

Liquid filter bags are the replaceable filter elements for bag filter systems . Our bags are manufactured in a variety of materials offering ratings of between 1 and 1200 µm. These materials include polypropylene, polyester, nylon, porous PTFE film, nomex and stainless steel. And there are also plenty of media types you can choose, such as needle felt, monofilament mesh, multifilament mesh and melt blown.
Product Information
|
Item
|
Liquid filter bag
|
|||
|
Material
|
PE, pp, Nylon(NMO), Polytetrafluoroethylene(PTFE), Support customization
|
|||
|
Size
|
#1: 7” ×16” (17.78cm×40.64cm)
#2: 7” ×32”（17.78cm×81.28cm） #3: 4” ×8.25” (10.16cm×35.56) #4: 4” ×14” (10.16cm×35.56cm) #5: 6” ×22” (15.24cm×55.88cm) Customized size |
|||
|
Filtration accuracy
|
PP/PE: 0.5-300 microns
NOM: 10-1200 microns |
|||
|
Bag body types
|
Stitched, Welded
|
|||
|
Bag top types
|
Plastic ring top, Metal ring top, Raw top, Drawstring top
|
|||
|
Bag bottom types
|
“Arc” shape bottom, “V” shape bottom
|
|||
|
OEM/ODM:
|
Support
|
|||
|
Filter Bag Model
|
Filter Bag Area(m²)
|
Filter Bag Volume(Liter)
|
|
#1
|
0.19
|
7.9
|
|
#2
|
0.41
|
17.3
|
|
#3
|
0.05
|
1.4
|
|
#4
|
0.09
|
2.5
|
|
#5
|
0.22
|
8.1
|
Filter material performance
Precision conversion table
Product Details
Plastic Ring top Metal Ring Top Cutting Raw Top Drawstring Top
Five-thread sewing hemming technology
High pressure resistance
The bag mouth is tightly stitched without gaps.
The needle thread is tight and there is no needle eye to prevent leakage.
This product is produced using a high-speed industrial sewing machine and uses silicone-free oil to cool down.
The needle thread is tight and there is no needle eye to prevent leakage.
This product is produced using a high-speed industrial sewing machine and uses silicone-free oil to cool down.
Hot melt welding
Sealed without leakage
Hot-melt welding, seamless combination process, strengthen the dirt collection effect. Use digital co-located multi-point welding equipment to ensure that each point of welding is firm. Without any special bleaching and dyeing treatment, it fully complies with environmental standards.
Welded arc
Stitched arc
Welded V
All the materials we use contain no toxic elements, and they are recyclable and environment-friendly. The needle felt is durable, can be used for a long time. And it can be provided in different specifications.
Applications
Food and Beverage, Bioengineering and Medicine; Petrochemical and Chemical Industry; Automotive Manufacturing; Petroleum and Natural Gas; Electronics and Electroplating; Paint, Ink; Nuclear and Thermal Power and Waste Water Filtration; Photographic Film Production Process Liquid Filtration; Daily Chemical Liquid and Gas Purification; Mechanical Processing and Refrigeration Industry Cooling Liquid Filtration; Textile,Printing and Dyeing, Various Liquid Purification In Papermaking Industry.
